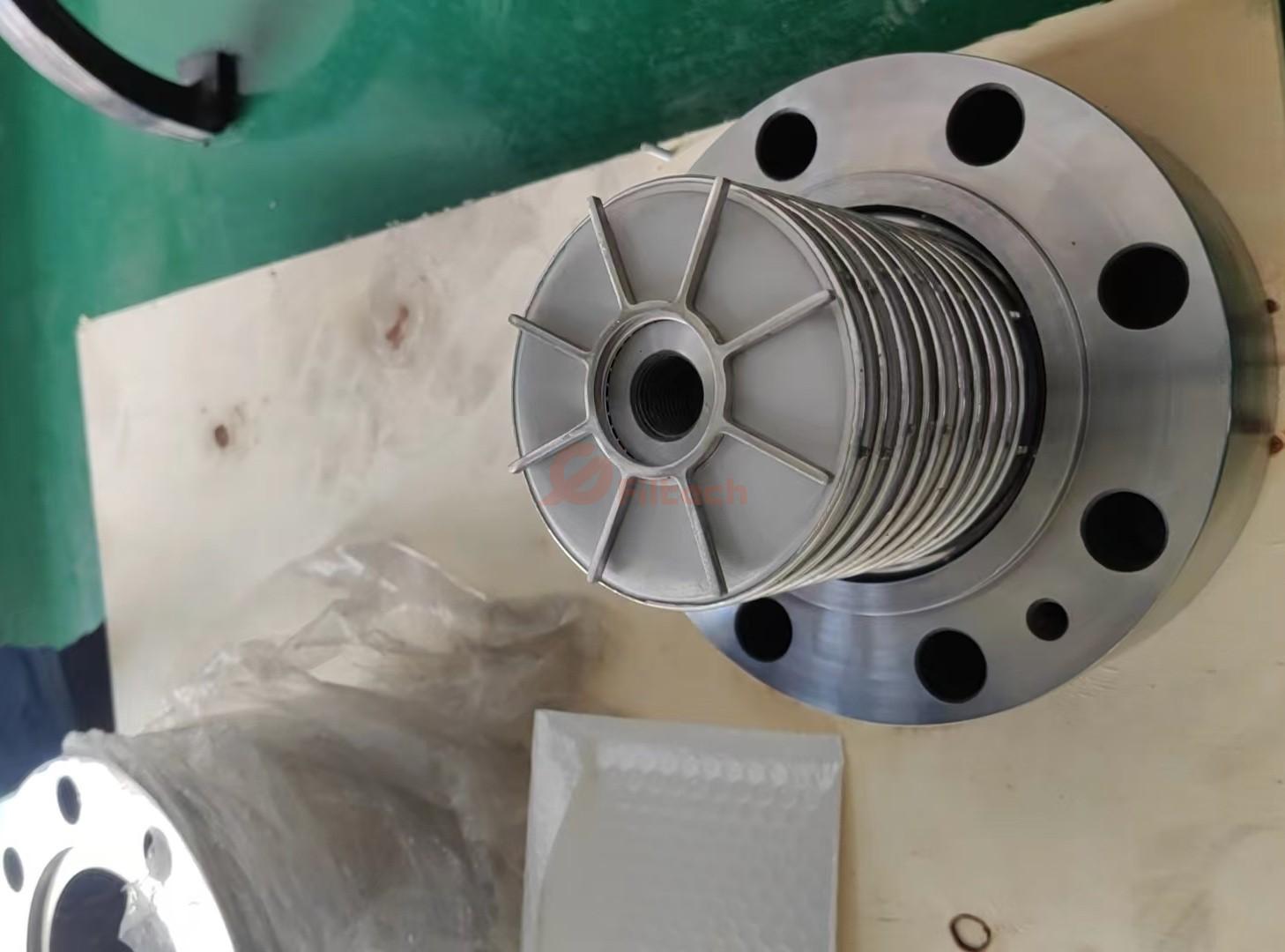

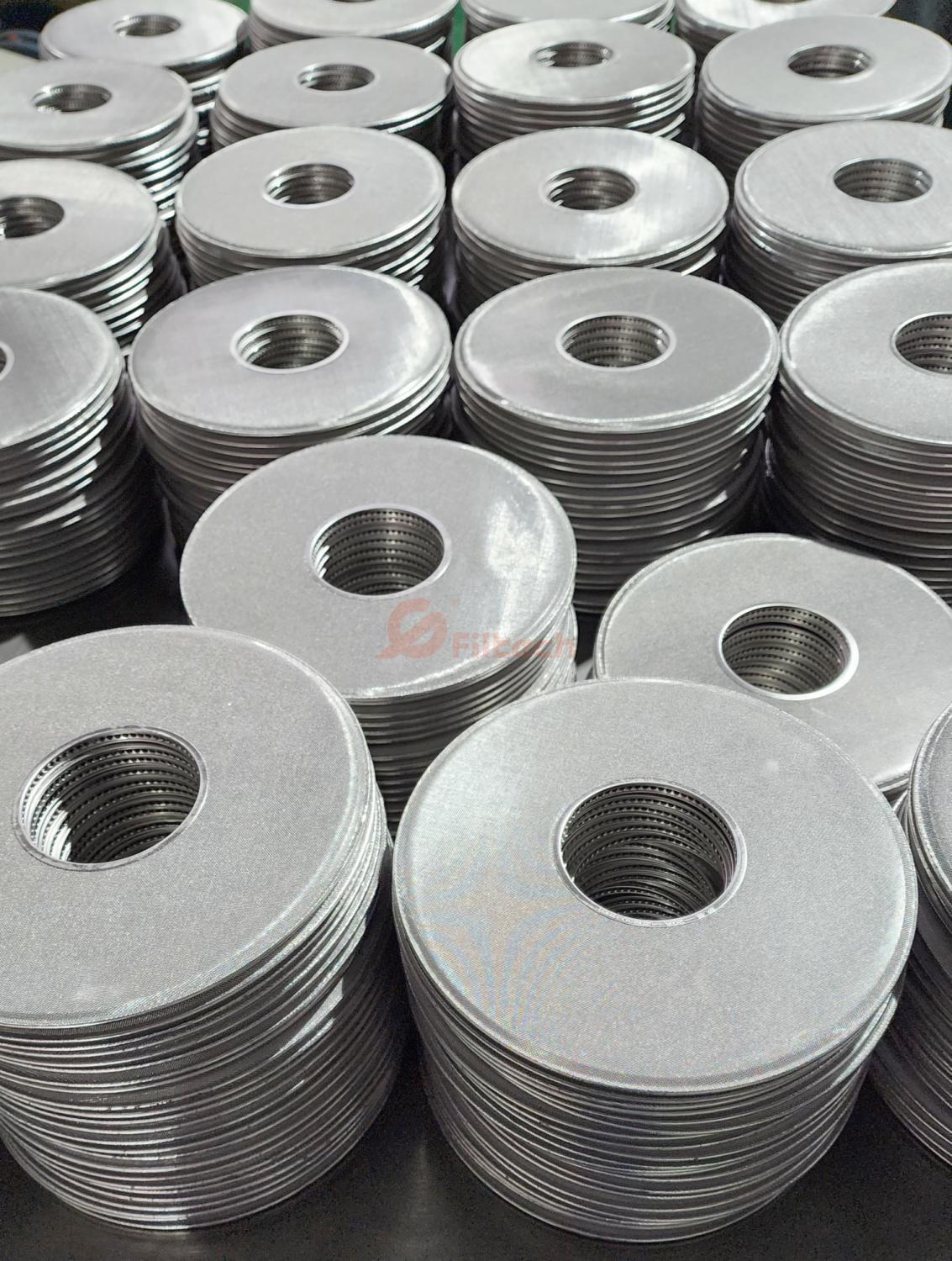

Melt filter discs are also called disc filter elements, which are used for filtering high-viscosity melts. The disc design makes the effective filtering area per cubic meter very large, realizing the effective use of space and the miniaturization of the filtering device. The main filter material is stainless steel sintered felt or multi-layer stainless steel sintered mesh. Features: The filter element bears pressure evenly; the filtering performance is stable; it can be cleaned repeatedly and has a long service life.
Metal filter discs are divided into two types, according to the material: stainless steel sintered fiber felt, stainless steel sintered mesh; according to the structure: soft seal (center ring wrapped edge type), hard seal (center ring welded type). Among the above types, the biggest advantage of SS sintered mesh filter material is high strength and impact resistance, but low dirt holding capacity. The advantages of sintered felt are large dirt holding capacity, strong service life, and good air permeability.
Specifications:
1. Size: 4.3", 7", 8.75", 10", 12";
2. Pore size: 3~200μm;
3. Material: 304L, 316L, 310S
Applications:
1. Li-ion Battery Separator melt filtration;
2. Carbon fiber melt filtration;
3. BOPP biaxially oriented polypropylene film melt filtration;
4. BOPA biaxially oriented nylon film melt filtration;
5. BOPET biaxially oriented polyester film melt filtration;
6. High viscosity melt filtration
