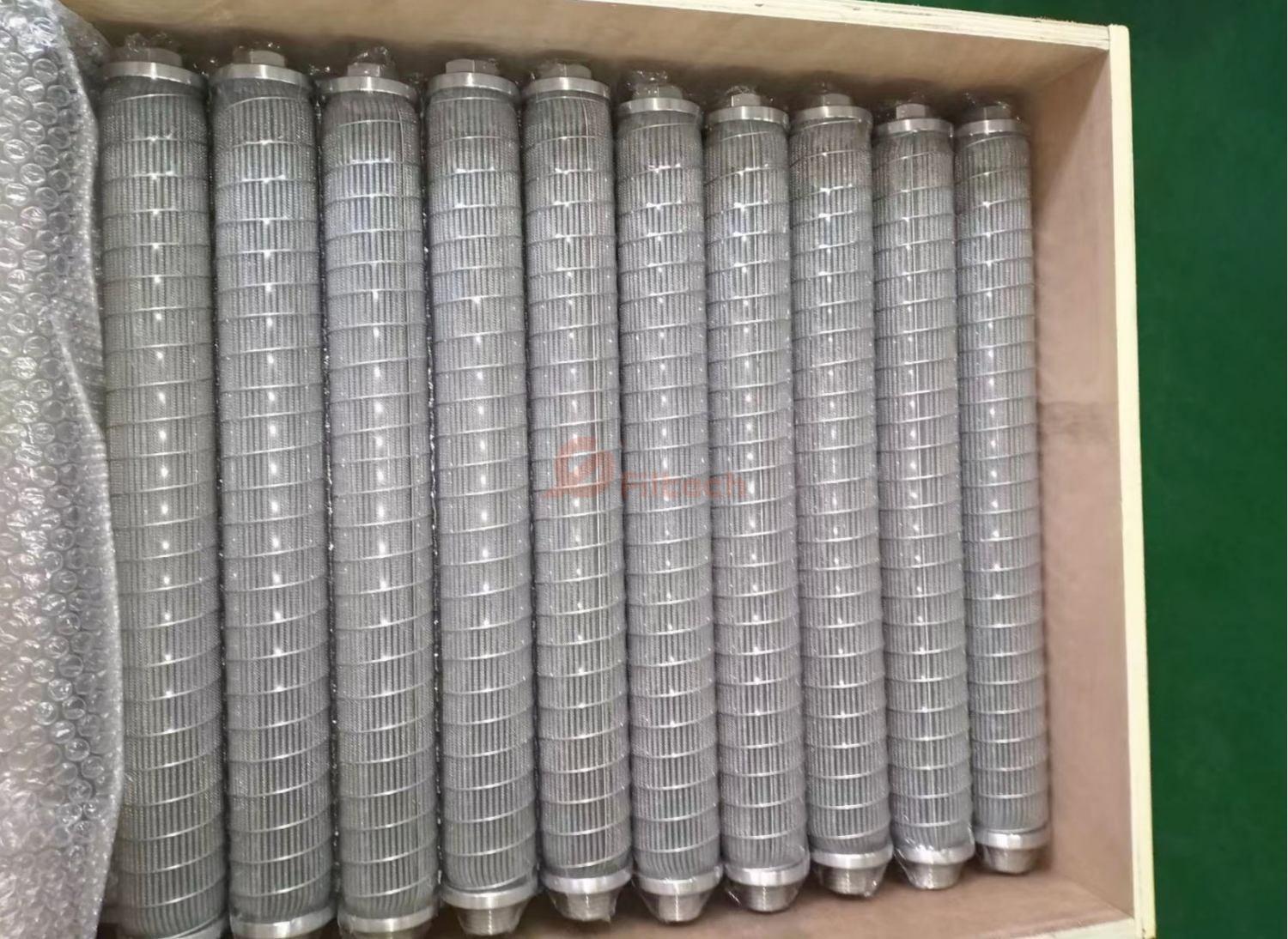

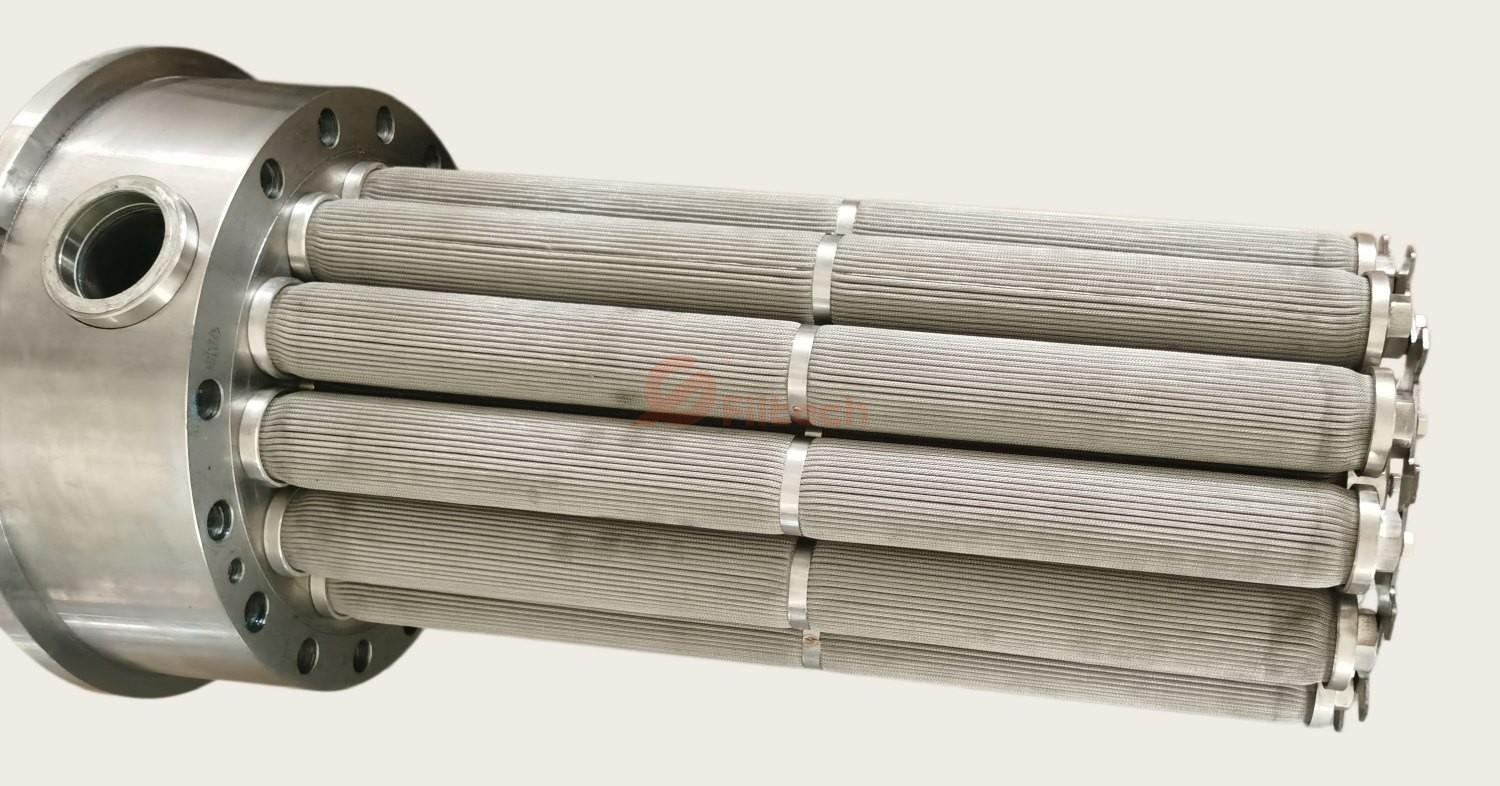

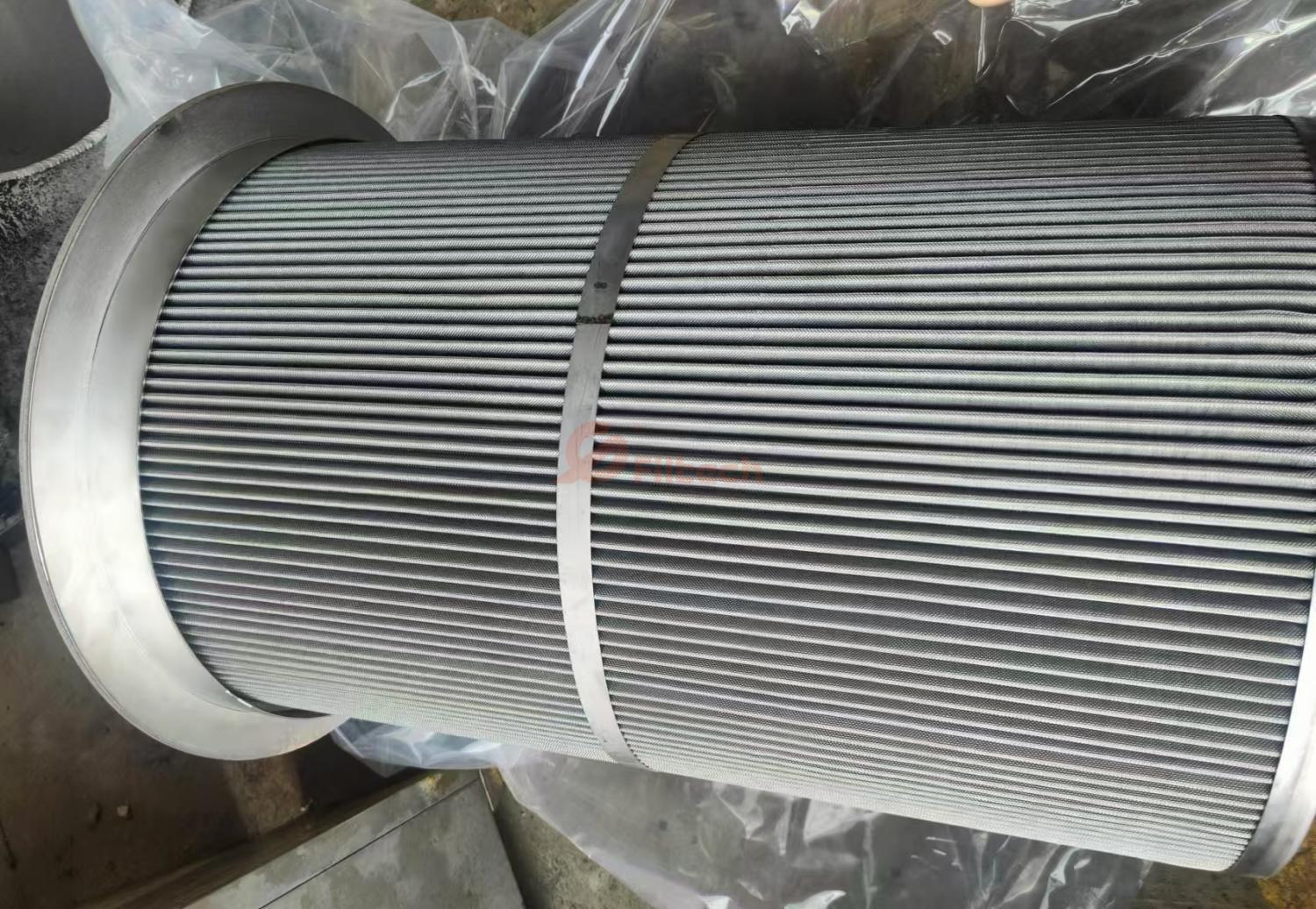

Metal pleated filter elements include: metal fiber sintered felt and metal woven wire mesh. The former can be made into a multi-layer structure with pore sizes ranging from coarse to fine, and has the characteristics of high porosity and high dirt holding capacity. The second is woven from stainless steel wires of different diameters, and the filter element has the characteristics of good strength, not easy to fall off, easy to clean, high temperature resistance, and economical use.
Its main features are: after corrugation, the area increases by 2~3 times, the dirt holding capacity is stronger, and the replacement cycle is longer. It has high porosity, strong air permeability, low pressure difference, and is suitable for filtering high viscosity media. It has excellent strength, high temperature resistance, and corrosion resistance. It has good regeneration and can be used repeatedly after chemical cleaning, high temperature calcination and ultrasonic cleaning.
Specifications:
1. Size: OD65~150mm, L100~1400mm;
2. Pore diameter: 3~200μm;
3. Material: 304, 310S, 316, 316L
Application areas:
1. Filtration of high-temperature melt of chemical fiber;
2. Filtration of polymer melt in polyester and film production;
3. Filtration of high-temperature liquid and viscous liquid;
4. Diesel exhaust purification;
5. Liquid filtration in chemical plants.
