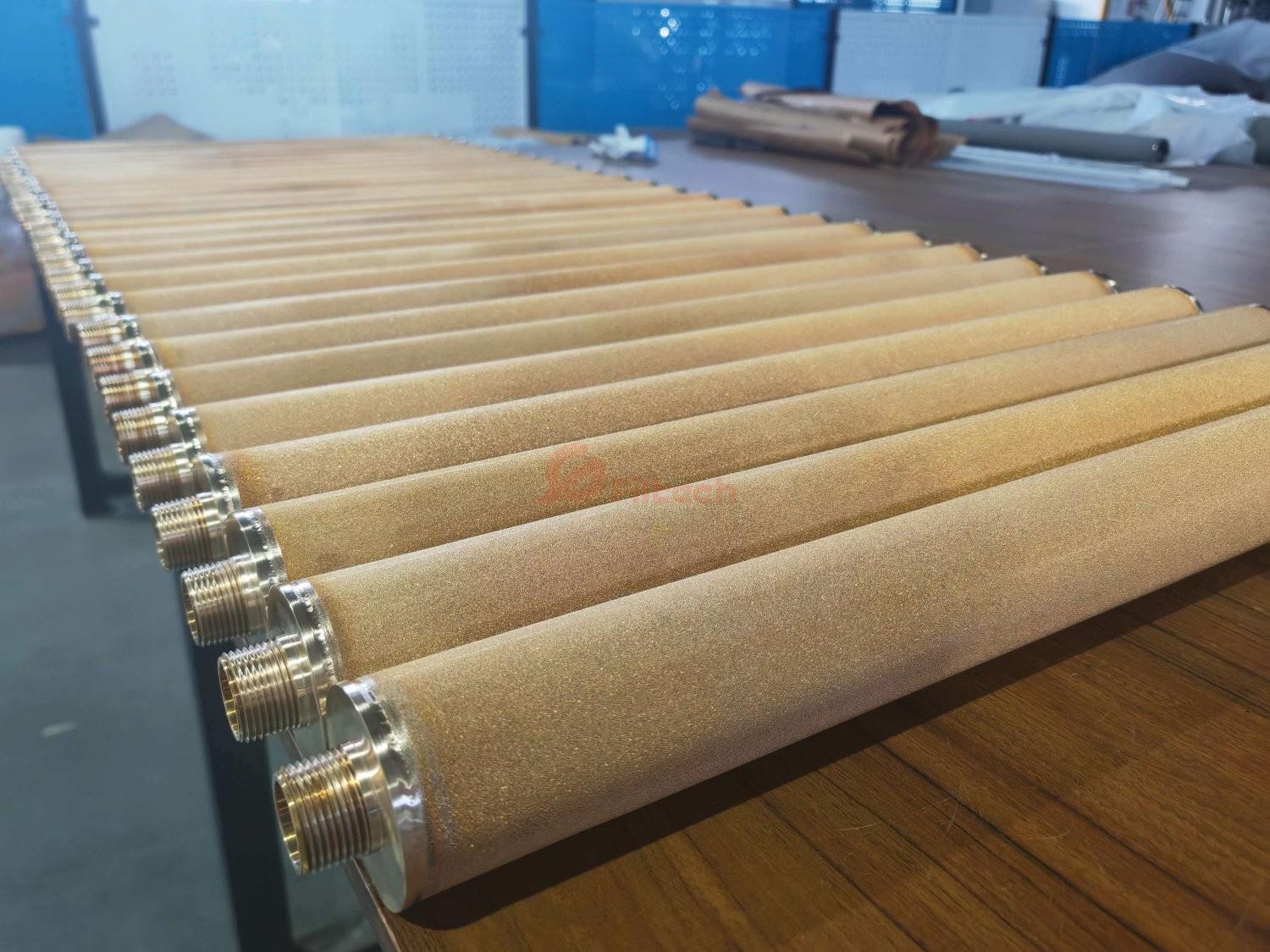

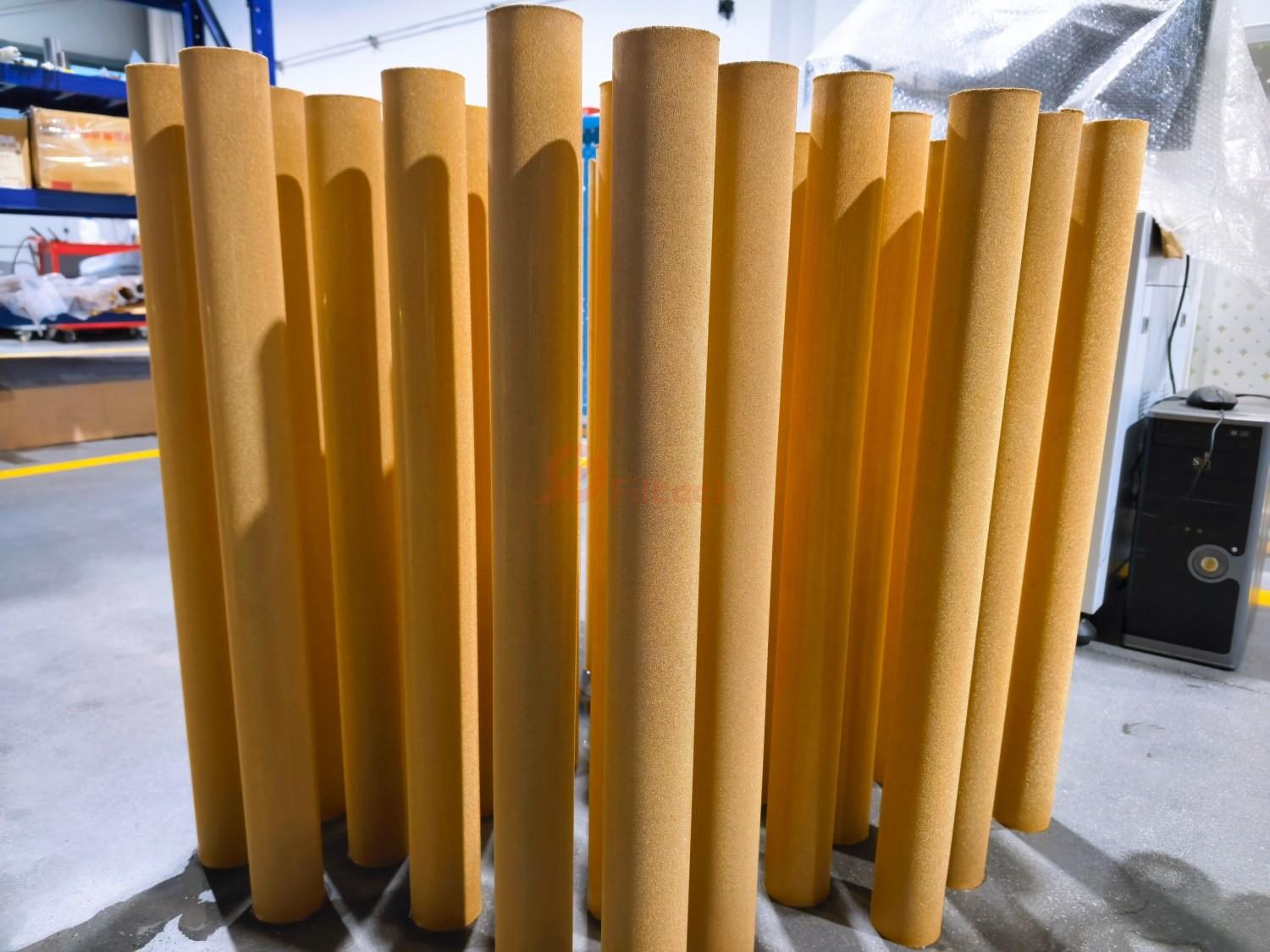

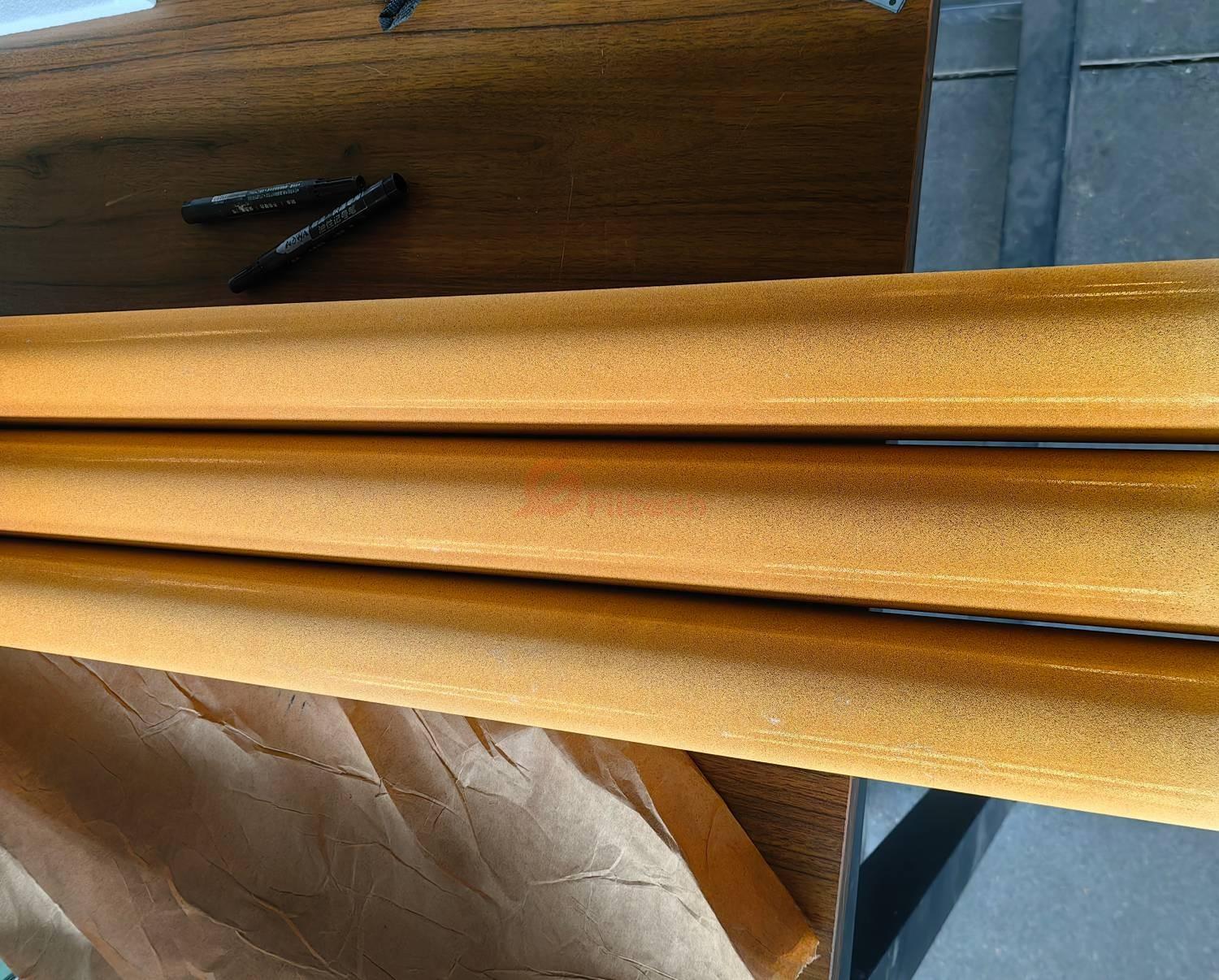

Sintered bronze filter cartridge normally used in gas containing oxygen, the round shape particles material with gas-atomized process increases the porosity and decrease the original pressure drop, which is high efficiency than water-atomized process Monel-400 powders.
The max length is 750mm without welding and inside support. High strength and long service life.
The advantages of this type of powder sintered bronze filter element are very significant:
1. Can be regenerated online repeatedly without the need for offline cleaning;
2. The use cycle and lifespan are longer than ordinary PTFE, PP, and PE filter elements;
3. By selecting Cu90Sn10, oxygen gas resistant;
4. Economic than Monel-400 material filter tubes;
5. Multiple connection and sealing methods are available, and disassembly is easy;
Specifications:
1. Size: OD10~80mm, if it is less than 10mm, please contact us;
2. Accuracy: 1~50μm
3. Material: Bronze
4. Connector: NPT, DOE, 226, etc
Application areas:
Separation of gas and solid;
Oxygen gas filter;
Fluidization.
